About Miniature Circuit Breaker
Miniature Circuit Breaker is a safety accessory with an electro-mechanical mechanism of action. MCB is an automatic switch that opens when excessive current flows through the circuit. It can be reclosed without any manual replacement.

Type of Miniature Circuit Breaker

01

Single Pole

Single-pole breakers are wired with one hot wire and one neutral wire.

02

Double Pole

Double-pole breakers have two hot wires that are connected by a single neutral wire.

03

Three Pole

Three Pole circuit breaker have 3 protected poles and 6A In rated current and C tripping curve.

04

Four Pole

4pole MCCB have one additional 4th pole for neutral wire connection so that between neutral and any of the other three will supply.

Why Miniature circuit breakers Use?

01

Miniature circuit breakers are intended to prevent damage to an electrical circuit as a result of excess current.

02

They are designed to trip during an overload or short circuit to protect against electrical faults and equipment failure.

Our Product
Explore our Miniature Circuit Breaker range

We are a most dependable name among the topmost firms in this area, indulged in providing an excellent quality Miniature Circuit Breaker to our valued customers.

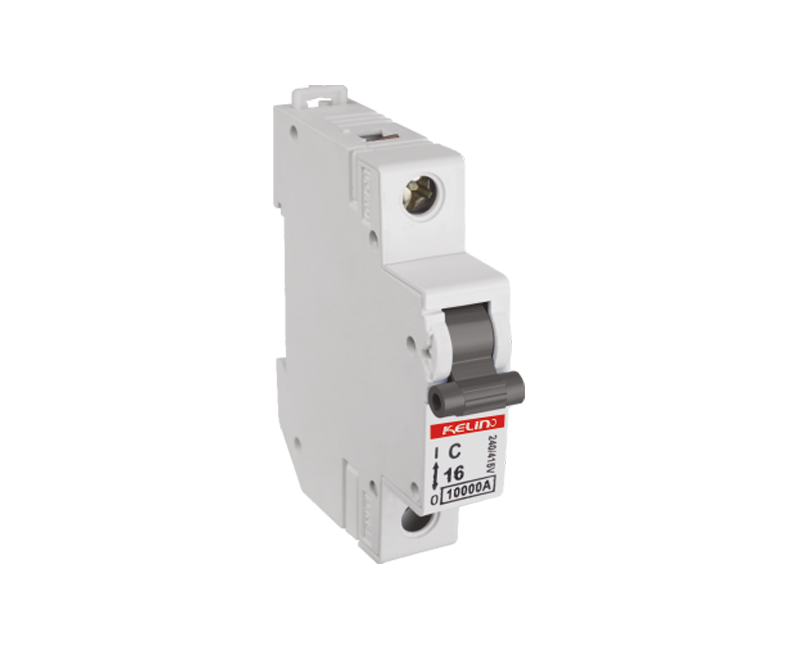

  • Single Pole "C" Series 240/415 - 50 Hz.

    KL 8031

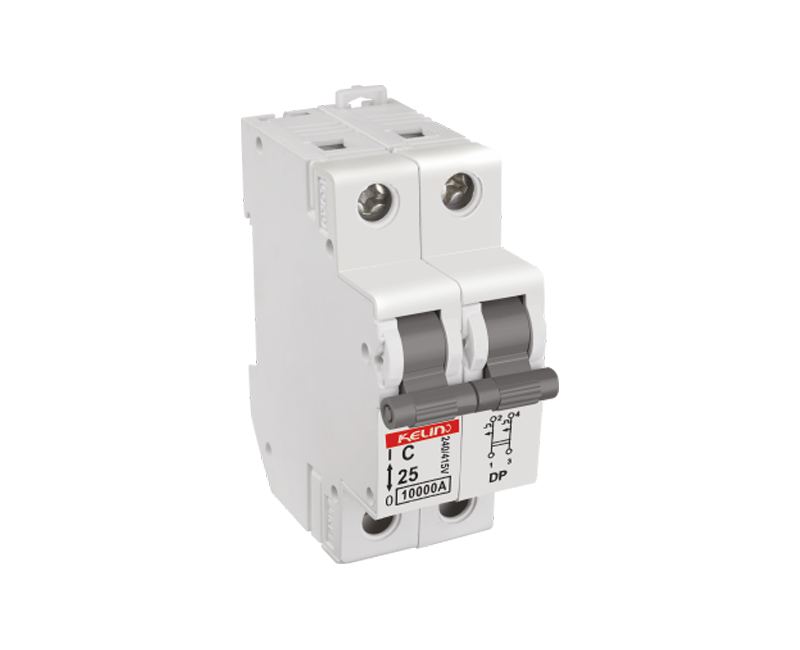

  • Double Pole 'C' Series 240/415 - 50 Hz.

    KL 8034

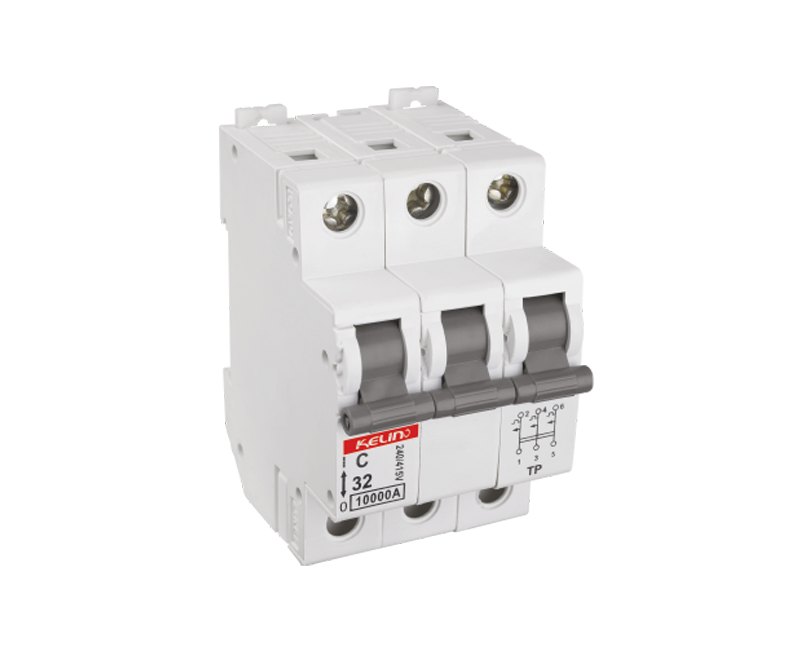

  • Three Pole 'C' Series 240/415 - 50 Hz.

    KL 8037

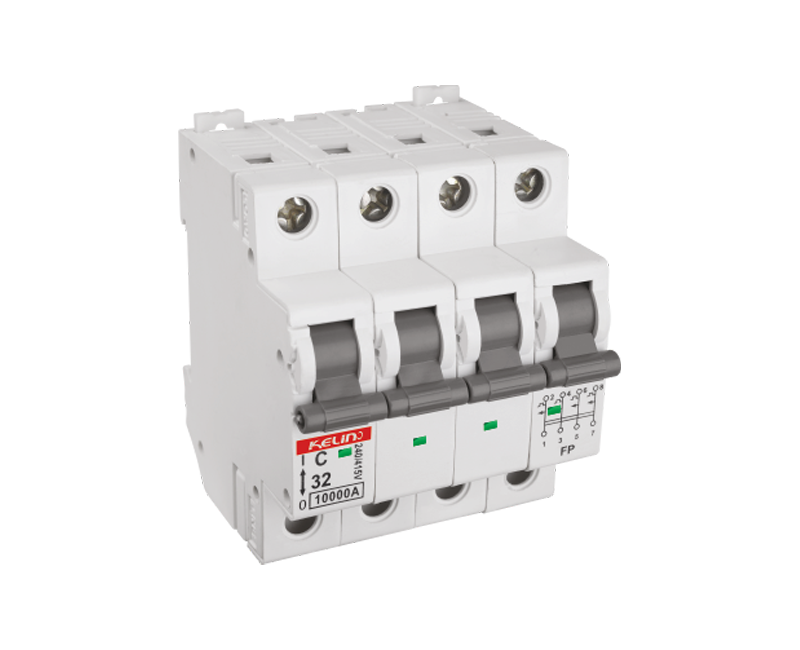

  • Four Pole 'C' Series 240/415 - 50 Hz.

    KL 8040

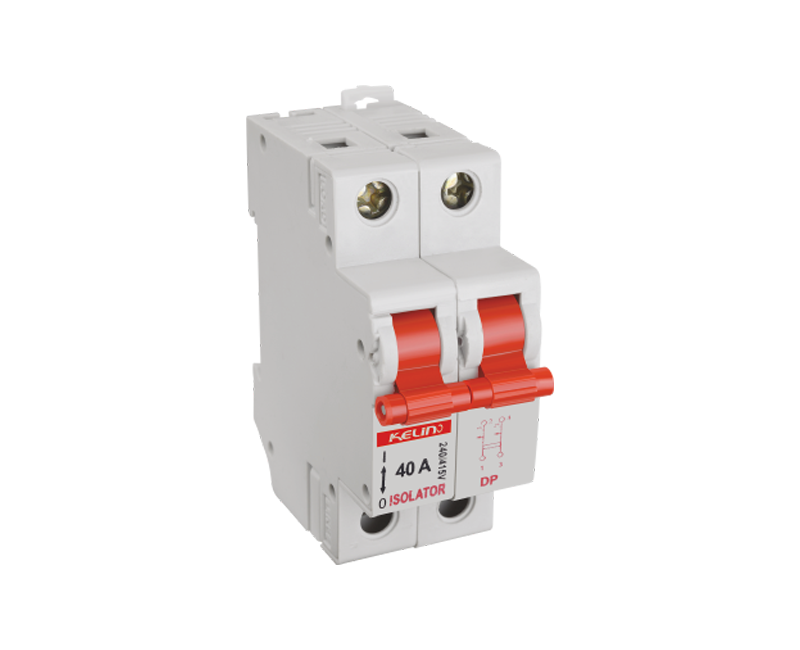

  • Double Pole Isolator 240/415 - 50 Hz.

    KL 8043

  • Three Pole Isolator 240/415 - 50 Hz.

    KL 8046

  • Four Pole Isolator 240/415 - 50 Hz.

    KL 8049
